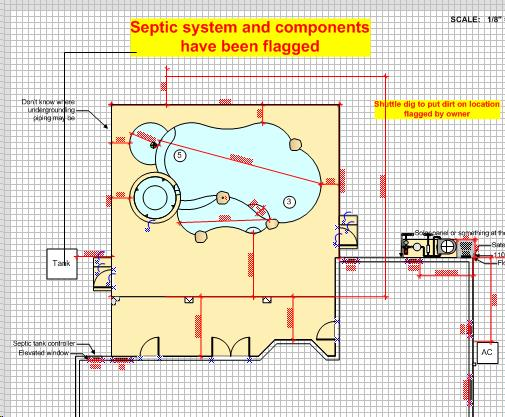

Site plans
Dimensioned layout of pool, spa, and residence with setbacks, utilities, and flagged site conditions — the sheet the permit office reads first.
PoolDraw™ · Product sheet
Software that draws like an engineer.
PoolDraw™ runs inside Microsoft Visio on Windows and turns a pool design into a complete construction document set — dimensioned, scaled, and ready for the permit counter and the crew truck.
What it produces

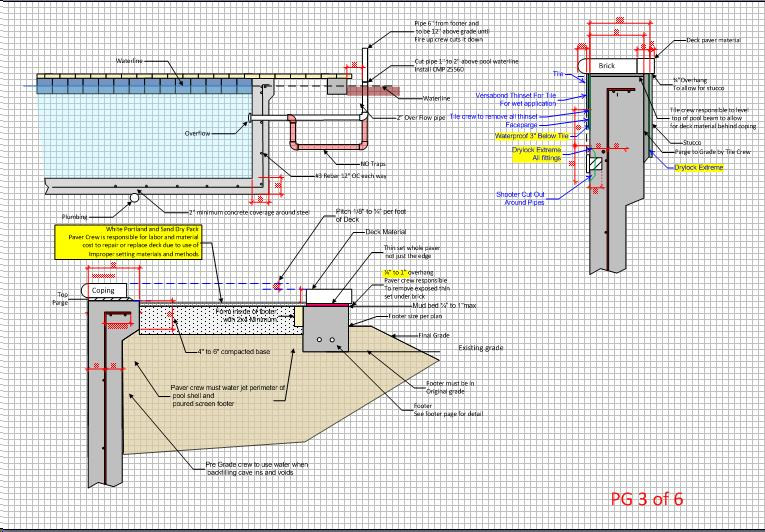

Structural sections
Coping, deck, footer, and waterproofing details with crew scope notes, so responsibility is on the drawing, not in someone's memory.

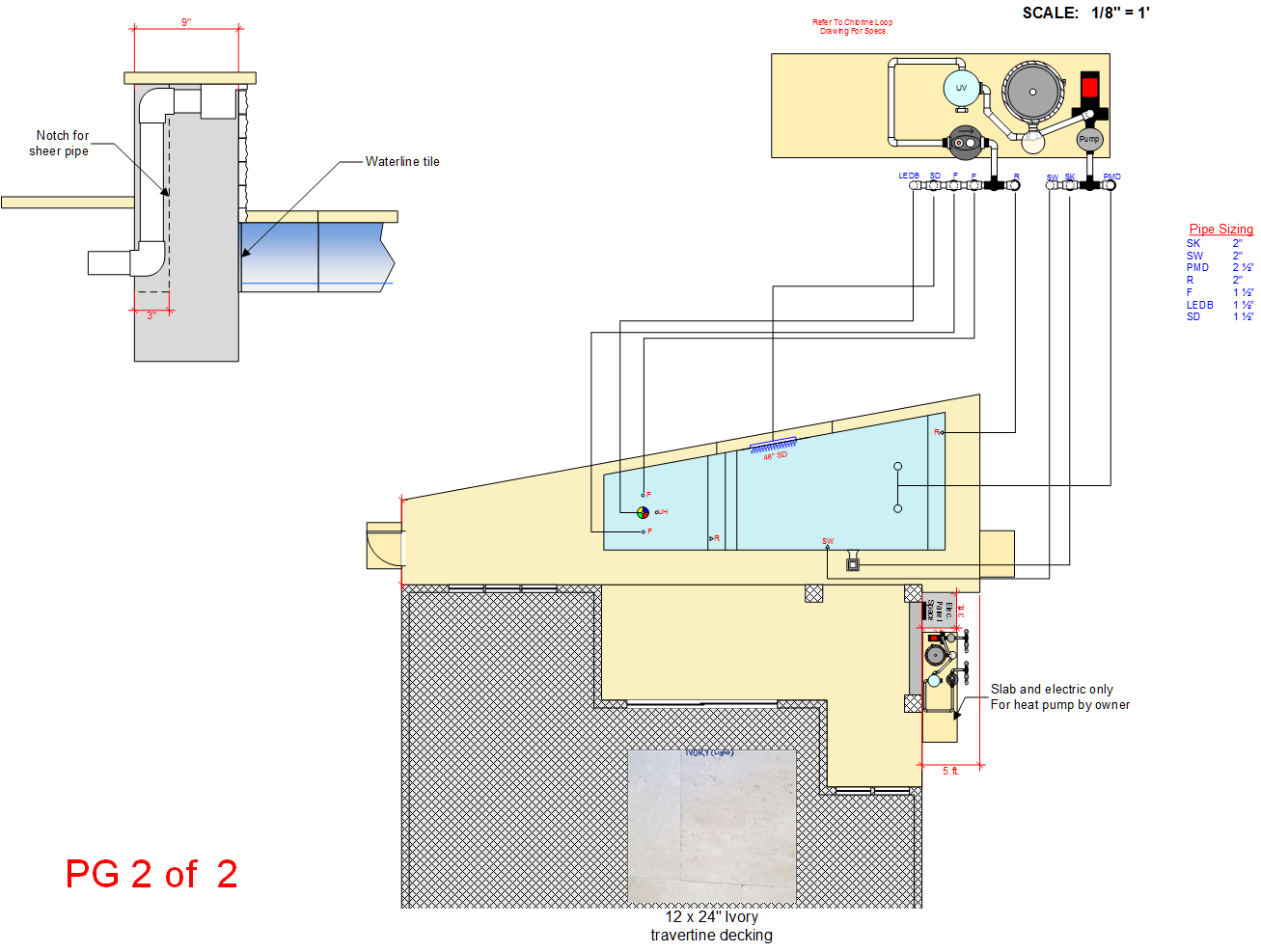

Hydraulic + equipment schematics
Equipment pad layout, pipe runs, and pipe-sizing schedules that document the system as it will actually be plumbed.
Permit + crew paperwork
The back-office documents that carry a sold job through permitting and construction — generated from the same drawing the customer approved.

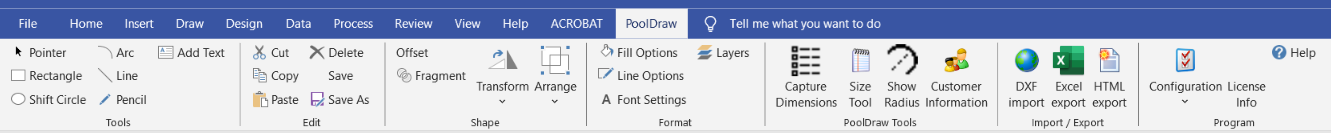

The PoolDraw ribbon
PoolDraw adds its own tab to Microsoft Visio. Everything you need to draw a pool, dimension it, capture the customer's details, and export the job lives in seven groups on one ribbon — no menu-hunting, no plug-in juggling.
GRP 1
Tools
Pointer, Arc, Line, Rectangle, Shift Circle, Pencil, Add Text — the drawing primitives.
GRP 2
Edit
Cut, Copy, Paste, Delete, Save, Save As.
GRP 3
Shape
Offset, Fragment, Transform, Arrange — reshape and organize geometry.
GRP 4
Format
Fill Options, Line Options, Font Settings, Layers.
GRP 5 · the pool intelligence
PoolDraw Tools
Capture Dimensions · Size Tool · Show Radius · Customer Information
This is the group a generic CAD install doesn't have. Capture Dimensions and the Size Tool put real, scaled measurements on the drawing; Show Radius reads curves the way a builder needs them; Customer Information ties the job to the person buying it — so one file carries the whole project.
GRP 6
Import / Export
DXF import, Excel export, HTML export — move drawings and job data in and out.
GRP 7
Program
Configuration, License Info, Help.
Genuine output
Every sheet below is real PoolDraw output — not concept art
Platform + licensing
PoolDraw is a Visio add-in: it uses Microsoft Visio's drawing engine and adds the pool-industry intelligence — shapes, schedules, schematics, and document generation — on top. You get real CAD behavior in an environment a salesperson can drive in front of a customer.
Licenses are one-time purchases: perpetual, licensed to one user on one computer, with a two-step activation that binds the license to your machine. Full terms and ordering are on the purchase page.
